HXD-4401

Exceptional Sensitivity (108dB @ 1W/1M) – Industry-leading sensitivity delivers massive acoustic output with moderate amplifier power, significantly reducing system amplification costs and maximizing dynamic range and headroom for large venues.
High Power Capacity (40W RMS) – Robust voice coil construction and advanced thermal management ensure reliable performance even under sustained high-power operation in demanding live sound environments.
Extended Frequency Response (1–20kHz) – Seamless integration with mid-range drivers, covering the full critical vocal and high-frequency spectrum with exceptional clarity and natural reproduction.
Titanium Diaphragm – High-strength titanium provides superior stiffness-to-weight ratio, delivering fast transient response, extremely low distortion, and outstanding durability at extreme SPL levels.
Large Voice Coil (44.4mm / 1.75″) – Large-diameter CCAW (copper-clad aluminum wire) voice coil reduces moving mass for extended high-frequency response while maintaining high conductivity and exceptional power handling.
High Flux Density (1.65T) – Advanced ferrite magnet system delivers high magnetic flux density for superior motor strength, ensuring accurate diaphragm control and low distortion even at high output levels.
Screw-on 1-3/8″ Mounting – Industry-standard thread mounting ensures broad compatibility with most professional horn flares and waveguide designs.
Heavy-Duty Construction – 115mm overall diameter with 66mm depth and robust construction, designed for long-term reliability in touring and fixed installation applications.

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Categories: 1.75 inch / 44 mm

Description

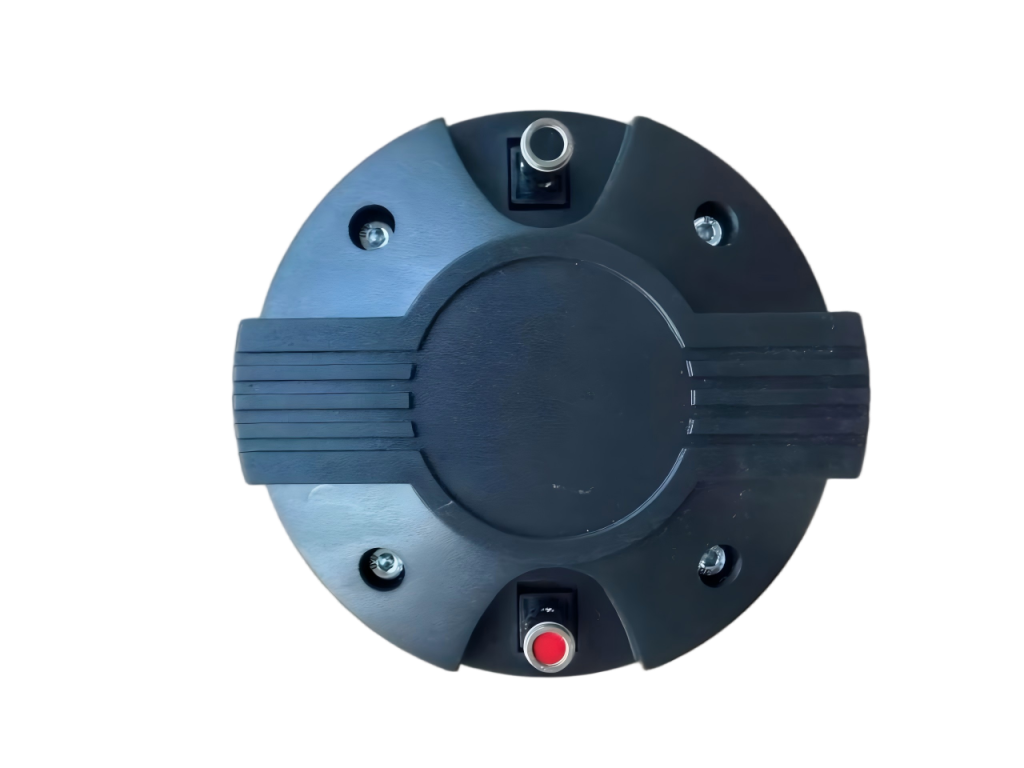

The HXD-4401 is a 1.75-inch large-format titanium high-frequency compression driver engineered for the most demanding professional sound reinforcement applications. Featuring a 44.4mm CCAW voice coil, a high-strength titanium diaphragm, and a 1.65T ferrite magnet system, this driver delivers exceptional 108dB sensitivity and 40W RMS power handling with a smooth 1–20kHz frequency response — making it the premier choice for large-format line arrays, stadium PA systems, festival sound stages, and high-output cinema installations.

As the flagship model in the Hensinda compression driver series, the HXD4401 delivers the power, clarity, and reliability required for world-class live sound and fixed installation applications.

✅ Key Features & Benefits

Exceptional Sensitivity (108dB @ 1W/1M) – Industry-leading sensitivity delivers massive acoustic output with moderate amplifier power, significantly reducing system amplification costs and maximizing dynamic range and headroom for large venues.
High Power Capacity (40W RMS) – Robust voice coil construction and advanced thermal management ensure reliable performance even under sustained high-power operation in demanding live sound environments.
Extended Frequency Response (1–20kHz) – Seamless integration with mid-range drivers, covering the full critical vocal and high-frequency spectrum with exceptional clarity and natural reproduction.
Titanium Diaphragm – High-strength titanium provides superior stiffness-to-weight ratio, delivering fast transient response, extremely low distortion, and outstanding durability at extreme SPL levels.
Large Voice Coil (44.4mm / 1.75″) – Large-diameter CCAW (copper-clad aluminum wire) voice coil reduces moving mass for extended high-frequency response while maintaining high conductivity and exceptional power handling.
High Flux Density (1.65T) – Advanced ferrite magnet system delivers high magnetic flux density for superior motor strength, ensuring accurate diaphragm control and low distortion even at high output levels.
Screw-on 1-3/8″ Mounting – Industry-standard thread mounting ensures broad compatibility with most professional horn flares and waveguide designs.
Heavy-Duty Construction – 115mm overall diameter with 66mm depth and robust construction, designed for long-term reliability in touring and fixed installation applications.

✅ Applications

Large-format line array systems
Stadium and arena PA systems
Festival and outdoor concert sound stages
High-power cinema sound systems
Large-scale installed sound for sports venues and convention centers
High-end touring sound systems
OEM integration for premium professional audio brands

✅ Why Choose Hensinda Audio

As a professional speaker manufacturer with deep electroacoustic engineering expertise, Hensinda Audio delivers world-class performance, consistent quality, and competitive OEM/ODM solutions. Every HXD4401 driver undergoes 100% final testing for impedance, frequency response, sensitivity, and distortion to ensure it meets our stringent quality standards before leaving the factory. With our reliable global supply chain and dedicated technical support, we ensure your large-scale audio projects succeed — from concept to deployment.

Specifications

Parameter	Specification
Type	HF Compression Driver
Throat Diameter	1 inch (25.4mm)
Mounting Type	Screw-on 1-3/8″
Nominal Impedance	8Ω
Power Capacity (RMS)	40W (pink noise signal 12dB/oct)
Sensitivity (1W/1M)	108dB ± 2dB
Frequency Range	1 – 20kHz
Diaphragm Material	Titanium
Voice Coil Diameter	1.75 inch (44.4mm)
Voice Coil Material	CCAW (Copper-Clad Aluminum Wire)
Flux Density	1.65T
Magnet Material	Ferrite
Overall Diameter × Depth	Φ115mm × 66mm
Net Weight	1.49kg
Per Carton	12 pcs
Carton Size	380 × 254 × 180mm

FAQ

What material is the speaker diaphragm made of? Is it durable?

Titanium – Offers superior stiffness-to-weight ratio, delivering fast transient response, extremely low distortion, and outstanding durability at extreme SPL levels exceeding 130dB. Ideal for high-output PA and stadium systems.
Polyimide – Provides an ideal balance of stiffness, lightness, and internal damping, delivering warm, natural tonality with reduced listening fatigue. Perfect for studio monitors and vocal-critical applications.
Polyester – Engineered for mid-range applications, offering excellent internal damping and smooth, natural vocal reproduction with high power handling capabilities.

All our diaphragms undergo rigorous durability testing, including accelerated life testing at rated power for 100 hours continuously. With proper system integration (correct crossover frequencies and amplifier limiting), our drivers deliver decades of reliable service in touring and fixed installation applications.

What scenarios are the speaker drivers suitable for?

Our compression drivers are designed to meet the needs of various professional audio applications.

Our engineering team can also recommend the optimal driver for your specific system design and acoustic requirements.

Is the quality of the speakers guaranteed?

Absolutely. Quality is our top priority at Hensinda Audio. Our quality assurance framework includes:

100% Incoming Material Inspection – All raw materials (magnets, diaphragms, voice coils, frames) are tested before production.
In-Process Quality Control (IPI) – Key parameters such as voice coil centering, adhesive curing profiles, magnetic gap precision, and excursion limits are continuously monitored via SPC.
100% Final Testing – Every driver is individually tested for impedance, frequency response, sensitivity, and distortion before packaging.
Full Traceability – Each production batch is fully traceable from raw materials to finished goods.
24-Month Warranty – All our drivers come with a 24-month warranty covering manufacturing defects in materials and workmanship under normal operating conditions.

We are also certified to comply with CE, RoHS, and REACH standards, ensuring smooth customs clearance and market access worldwide.

Can I customize the specifications or branding of the speaker drivers?

Yes, we offer extensive customization and OEM/ODM services for wholesale buyers:

Acoustic Customization:

Frequency response shaping and tuning
Impedance curve optimization
Custom crossover point recommendations

Mechanical Customization:

Custom mounting formats and terminal configurations
Frame design and cosmetic finishes

Material Selection:

Diaphragm material (titanium / polyimide / polyester)
Magnet type (ferrite / neodymium)
Voice coil material (CCAW / aluminum flat wire)

Branding & Packaging:

Custom laser engraving on frames with your logo
Custom retail-ready packaging with your brand identity
Custom labeling and spec sheets

Please contact our sales team to discuss your specific requirements. For custom OEM/ODM projects, we provide full engineering support from concept validation, acoustic simulation, and prototyping to mass production.

What is the after-sales guarantee?

We provide comprehensive after-sales support for all our wholesale buyers:

24-Month Standard Warranty – Covers manufacturing defects in materials and workmanship.
Technical Support – Our engineering team provides assistance with frequency response tuning, crossover design consultation, impedance matching, and integration guidance for your specific audio system requirements.
Defect Compensation Program – For any quality issues confirmed on our side, affected units are replaced and shipped with your next order at no additional cost (rather than costly international returns).
Sample Support – We offer samples for testing and validation before bulk orders.
Lifetime Technical Consultation – Even after the warranty period, our team remains available for technical advice and support.

We believe in building long-term partnerships, and our after-sales service reflects that commitment. Our team responds to all after-sales inquiries within 10 hours, ensuring minimal disruption to your business.
